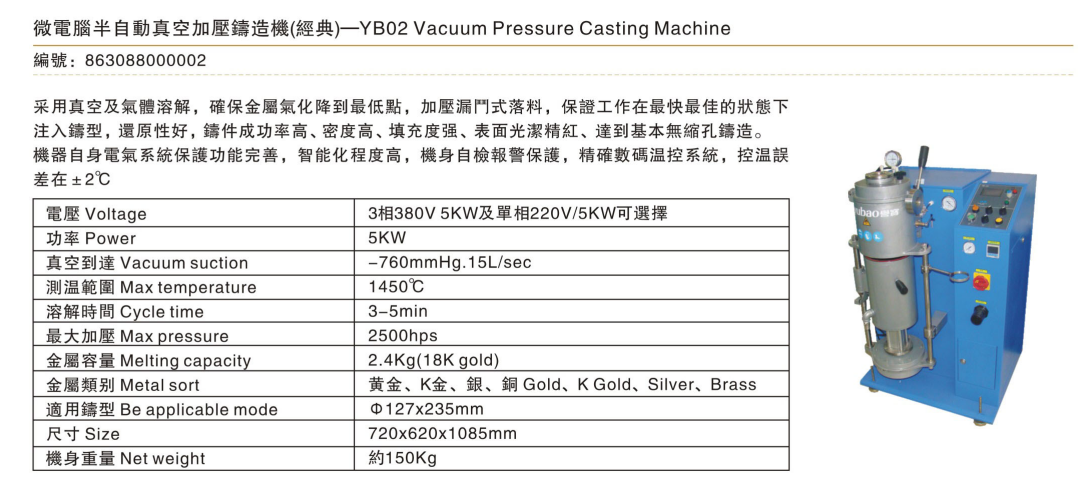

微电脑半自动真空加压铸造机（经典）-YB02 Vacuum Pressure Casting Machine

采用真空及气体溶解，确保金属气化降到最低点，加压漏门式落料，保证工作在最快最佳的状态下注入铸型，还原性好，铸件成功率高、密度高、填充度强、表面光洁精红、达到基本无缩孔铸造。

机器自身电器系统保护功能完善，智能化程度高，机身自检报警保护，精确数码温控系统，控温误差在±2℃

Vacuum and gas dissolution are used to ensure that the metal gasification to the lowest point, pressure leakage gate drop, to ensure that the work in the fastest and best state injection casting, good reduction, casting success rate, high density, strong filling, surface clean red, to achieve the basic no shrinkage hole casting.

The machine's own electrical system has perfect protection function, high degree of intelligence, fuselage self-inspection and alarm protection, accurate digital temperature control system, temperature control error in ± 2℃

电压Voltage：三相 380V  5KW/220V  5KW

功率Power：5KW

真空到达Vacuum suction：-760mmHg  15L/sec

测温范围Max temperature：1450℃

溶解时间Cycle time：3-5mins

最大加压Max pressure：2500hps

金属容量Melting capacity：2.4Kg（18K gold）

金属类别Metal sort：黄金、K金、银、黄铜 gold,k gold,silver,brass

适用铸型Be applicable mode：φ127x235mm

尺寸Size：720x620x1085mm

机身重量Net weight：150Kg
