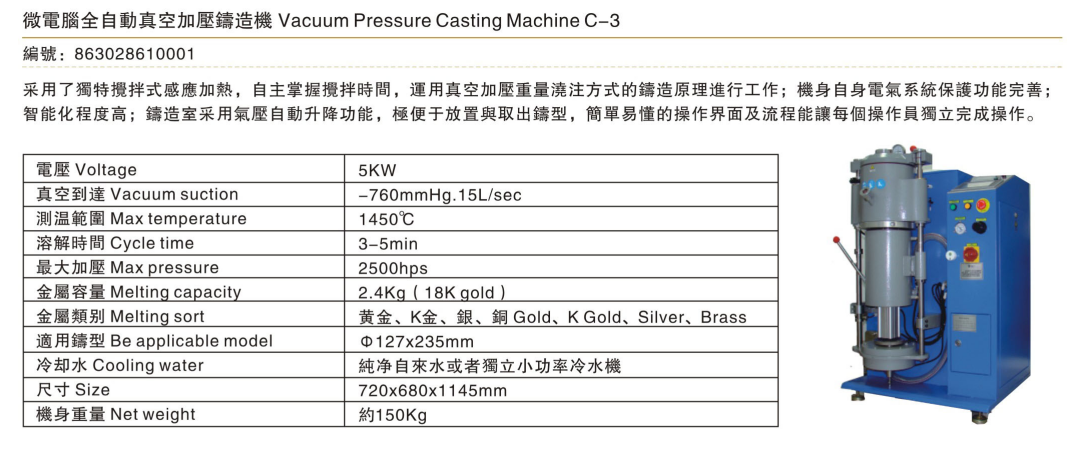

微电脑全自动真空加压铸造机Vacuum Pressure Casting Machine C-3

采用了独特搅拌式感应加热，自主掌握搅拌时间，运用真空加压重量浇注方式的铸造原理进行工作；机身自身电气系统保护功能完善；智能化程度高；铸造室采用气压自动升降功能，便于放置与取出铸型，简单易懂的操作界面和流程能让每个操作员独立完成操作。

Adopt unique mixing induction heating, mastering the mixing time independently and using the casting principle of vacuum pressure weight casting; the protection function of the electrical system is perfect; the casting room adopts the automatic air pressure lifting function, which is easy to place and remove the casting, and the simple operation interface and process allow each operator to complete the operation independently.

电压Voltage：5KW

真空到达Vacuum suction：-760mmHg 15L/sec

测温范围Max temperature：1450℃

溶解时间Cycle time：3-5mins

最大加压Max pressure：2500hps

金属容量Melting capacity：2.4Kg（18K gold）

金属类别Metal sort：黄金、K金、银、黄铜 gold  K gold silver brass

适用铸型Be applicable model：φ127x235mm

冷却水Cooling water：纯净自来水或者独立小功率冷水机

尺寸Size：720x680x1145mm

机身重量Net weight：150Kg
